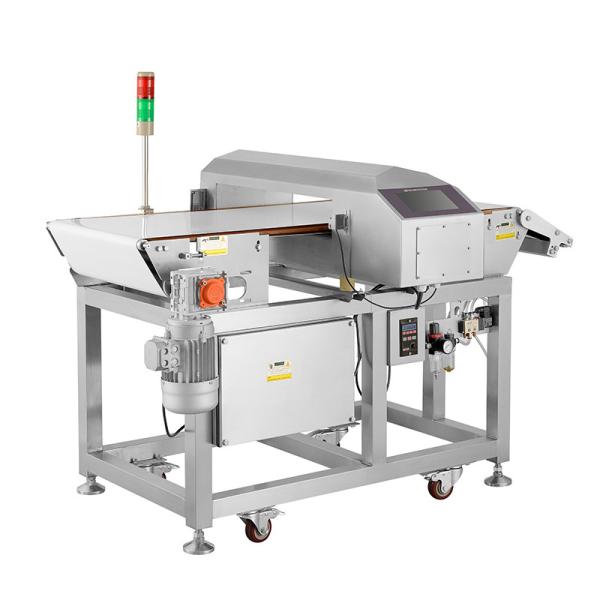

Conveyor belt food security metal detector ,new design metal detectors for food industry
Self-frequency adjustment .Enjoys a variety of operating frequency, According to products style self automatic adjustment.stable features.
self-learning function and high sensitivity.can recognize different kinds of products.
Can store and records about 100 product parameter data .easy for different production line shift
Can according to customer production line design the belt height so achieve butt-joint to
other equipment
Two digital collection line keeps it good performance .
Full Digital touch screen help it is easy to operate .
Special design for strong anti-interference function for harsh production environment
High standard shake-proof .water-proof keep it super performance and long service life.
Improve design keep it Zero wrong alarm when tap the probe.
succinctly detachable framework design let it easy for the operators to clean the equipment.
General specification :
Reject system :
| Standard layout | Automatic stop by alarm and so on |
| Optional | Air blast (Especially for light food, like instant noodle.Small punches.) |
| Optional | Push rod(Especially for middle bag,small box.small container and so on) |
| Optional | Fall drop(Especially for some grain.nut.granule .and so on unpack products) |
Application :
| Food industry |
| Medical industry |
| Food additives |
| Baby products |
| Other industry that need reject and detect metals |
Standard replace use Layout parts :
One set of hex wrench
Full sets of the range calibration test cards(Ferrous,non-ferrous ,Stainless steel)
Warranty
12month labor and parts
Full life technical support
Packing and shipment
Full machine takes of two layer package
Prepackage takes of plastic bags conveyor the full machine and the key parts have foam plastic protection
Eng package takes of Strong ploy wooden case that meet different country import standard
Installation and use
When you takes of the package .up the rubber base ,use wheel move it to your work place.
Then down the rubber base and fasten it..keep all the base in a horizontal
Then running the machine few hours before use ,No need complex installation .
The user guide will make in book and Videos for customer reference .
Sensitivity reference
| Details Tunnel size | 40*12cm | 40*15cm | 40*20cm | 50*15cm | 50*20cm | 50*25cm | 50*30cm |
| Sensitivity Fe(mm) | 0.8 | 1.0 | 1.2 | 1.0 | 1.2 | 1.5 | 2.0 |
| Sensitivity SUS(mm) | 1.5 | 2.0 | 2.5 | 2.0 | 2.5 | 3.0 | 3.5 |
| Detection height | 120 | 150 | 200 | 150 | 200 | 250 | 300 |
| Detection width | 400 | 500 |
| Belt speed | 10-35 meters per minute adjustable |
| Alarm method | Light and sound and optional reject |
Optional reject 1 :Push rod
Optional 2 flap drop
Optional 3 Air blast
